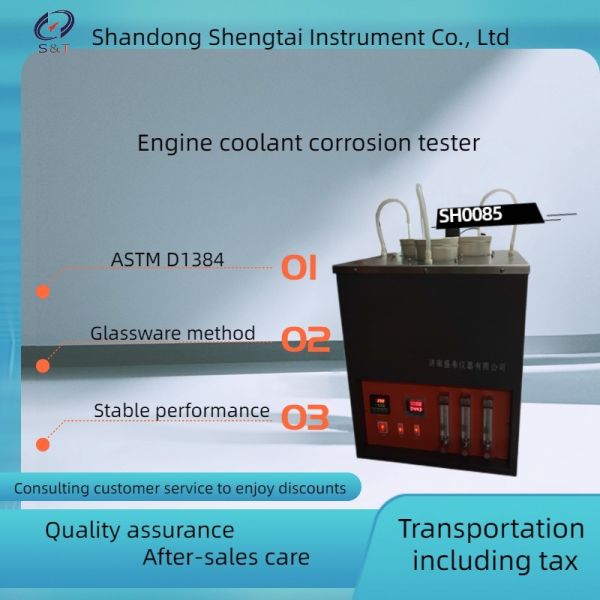

SH0085 antifreeze corrosion instrument is according to the law of
the People's Republic of China petroleum and chemical industry
standard SH/T0085 the engine cooling fluid corrosion measurement
the requirements of the design and manufacture, suitable for
according to the SH/T0085 standard measurement method, the
determination of high boiling point and low boiling point engine
coolant and concentrate on the extent of the typical specimens of
metal corrosion, SH0085 corrosion tester upgraded instruments bring
silent air compressor, no need to manually equipped with air.
| Product model | SH085 |
| Product Name | Engine coolant corrosion tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | The degree of corrosion of typical metal specimens by high boiling
point and low boiling point engine coolants and their concentrates |
ASTM D1384 Engine Coolant Corrosion Tester
ASTM D1384 Antifreeze Coolant Corrosion Tester
Engine Coolant Corrosiveness Tester
Coolant Corrosion Testing Equipment ASTM D1384
ASTM D1384 Engine Oil Tester for Coolant Oil
Main technical specifications
Beaker: Made of heat-resistant glass. High profile mouthless
1000ml, compliant with SH/T0085 standard
Gas diffusion tube: The diffusion head is made of sand core glass,
and the pipe diameter is made of heat-resistant glass.
Reflux condenser tube: water-cooled type, with a sleeve length of
no less than 400mm.
Technical parameters
| No. | Tech Indicator | Description |
| 1 | Power | AC220V±10% 50Hz |
| 2 | the power consumption of the whole machine | not more than 2000W.
|
| 3 | Temperature Control Range | room temperature ~+100℃ ±0.1℃ |
| 4 | Constant Temperature Precision | ±0.2℃ |
| Number of inspection holes | 3 holes |
| 5 | Ambient temperature | -10℃~+35℃. |
| 6 | Relative humidity | ≤85%. |
| 7 | A ir flow meter | flow range of 30~300ml/min |
| 8 | Timer | timing range 0~ 9999h |
| 9 | Package size: 430 * 420 * 450mm Weight: 34kg |
| 10 | Instrument size: 350 * 370 * 480mm Weight: 28kg |
Sample size and material:
SH/T0085 engine coolant corrosion determination method (glassware
method) set of test plates AST,M D1384
50x20x2mm (20# steel, brass sheet, copper sheet)
50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)
Single center hole: φ7.0mm
Supporting products:
Brass washers, Insulation washers, Steel washers, Insulation
bushing, Brass bracket
Instrument size: 350 * 370 * 480mm Weight: 28kg
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Power cord | 1 | piece | |
| 3 | Corrosion test piece | 3 | set | |
| 4 | Condenser tube | 3 | set | |
| 5 | Gas diffusion tube | 3 | set | |
| 6 | Fuse tube | 1 | piece | |
| 7 | Instruction manual | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy | |
