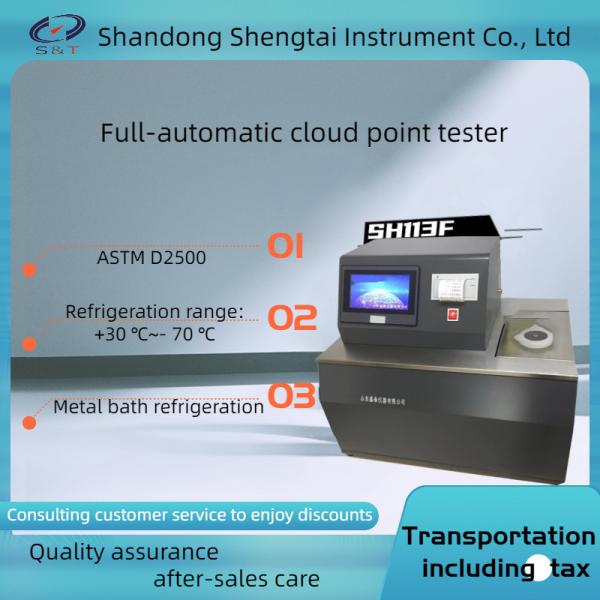

The SH113F fully automatic cloud point analyzer is in accordance
with the Chinese standard "Petroleum Cloud Point Determination
Method (GB/T6986-2014) It is required to design and manufacture a
main control component composed of multiple microcontrollers, with
automatic cooling, automatic constant temperature, automatic
detection, and automatic printing and output of results. Adopting a
dry trap shaped cold bath box, it has small hysteresis, fast
cooling, and no need for other cooling media, making it easy to use
and maintain. Adopting high-performance infrared detection
technology, with high detection sensitivity and strong reliability.
Cloud point: refers to the high temperature at which hydrocarbon
microcrystalline particles or water mist appear under test
conditions, causing the oil to appear cloudy.
The product also complies with ASTM D2500.
| Product model | SH113F |
| Product name | Fully automatic cloud point tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing Project | Petroleum Products |
| Compliant with standards | GB/T6986 Method for the determination of cloud point of petroleum
products |
| Simple technical features or parameters | using a main control component composed of multiple
microcontrollers, automatic cooling, automatic constant
temperature, automatic detection, and automatic printing output
results |
Technical parameters and characteristics:
1. Compliance with standard: GB/T6986 ASTM D2500
2. Human machine interface: 7-inch color LCD touch screen;
3. Refrigeration method: Fully enclosed high-efficiency
refrigeration compressor.
4. Test cold trap: 1.
5. Detection method: Imported photoelectric switch detection
6. After upgrading, historical data can be stored for easy query;
It can also be equipped with a USB flash drive output function.
7. Standard micro printer for automatic measurement and printing
8. If there are no personnel to operate after the test is
completed, set the automatic shutdown time of the refrigeration
machine within 0-50min to avoid frequent startup of the compressor,
and extend the service life of the instrument,
10. Standard micro printer for automatic measurement and thermal
printing
11. Number of test holes: single hole
12. Temperature range:+30 ℃~-70 ℃
13. Temperature control accuracy: ＜± 0.1 ℃
14. Sample size: Place at the scale line of the test tube
15. Refrigerating medium: metal bath refrigeration
16. Printer: Small thermal printer
17. Storage method: The experimental results can be stored in 199
sets of historical data for easy query;
18. Result output: It can also be equipped with a USB flash drive
output function, which can be output to the PC for long-term
storage
19. Output Format: The output format of the result USB drive is CSV
or Excel.
20. Standard printing: Standard micro printer for automatic
measurement and thermal printing
21. Data memory: The memory of microcomputer instruments can be
expanded to 16GB.
★ 22. Remote upgrade: With TCP network transmission function,
software remote upgrade can be carried out later (optional)
★ 23 Data management: can be connected to the LIMIS system
(optional)
25. Instrument size: 650 * 480 * 620mm Instrument weight: 75kg
Packaging size: 690 * 520 * 660 mm Packaging weight: 80kg
| Model | SH113F automatic turbidity point tester |
| Applicable standards | ASTM D2500.GB/T6986 |
| Temperature range | +30 ℃~-70 ℃ |
| Temperature control accuracy | < ±0.1℃ |
| Refrigeration medium | metal bath refrigeration |
| Instrument size: 650 * 480 * 620mm Instrument weight: 75kg |
| Package size: 690 * 520 * 660 Package weight: 80kg |
| Cloud point detection | optical fiber detection |
| Printer | a small thermal printer |
| Human-machine interface | 7 inch color LCD touch screen |
| Storage mode | 199 sets of historical data can be stored for easy query; |
| Results output | at the same time can be equipped with U disk output function,
output to the PC for long-term storage
|
| Data extension | laser printer interface, can be linked to HP1108 laser printer
(optional).
|
| Output format | the output format of the result USB flash disk is CSV or EXCEL. |
| Remote upgrade | with TCP network transmission function, can be later software
remote upgrade
|
| Data management | can be connected to LIMS system
|
| Data memory | microcomputer instrument memory can be expanded to 16G. |
| | |
Packing list of automatic Cloud point meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Cloud point glass test tube | 1 | set | Including inner tube and outer tube |
| 3 | Cloud point sensor | 1 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy | |
OUR service
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
