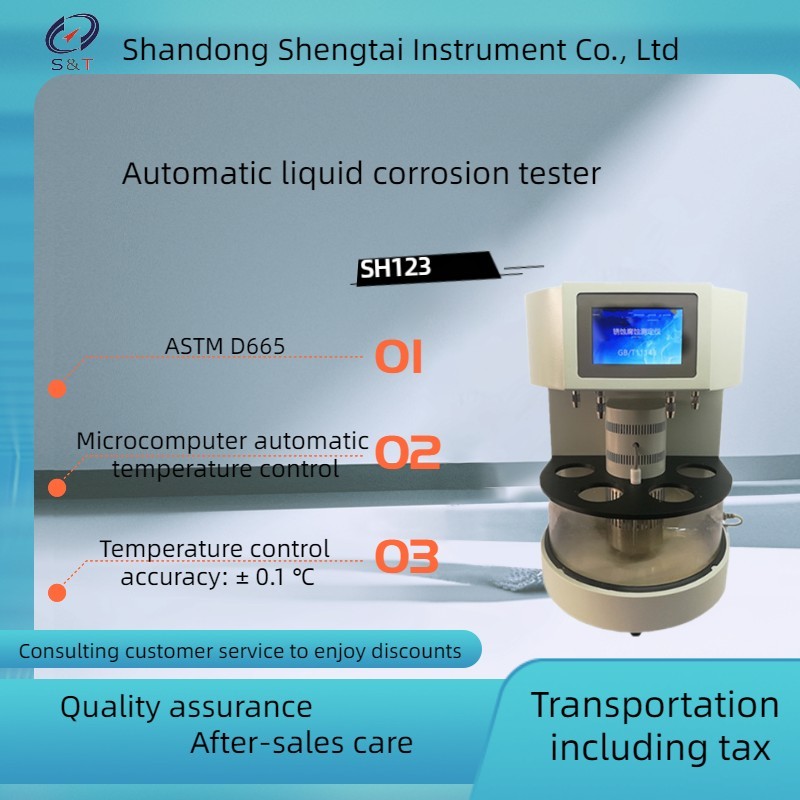

SH123 automatic liquid phase rust tester is designed in strict
accordance with GB / T11143 standard, and is first used to evaluate
the determination of adding inhibitor mineral oil and turbine oil
during water mixing; the liquid phase rust tester is equally
suitable for the determination of rust resistance of hydraulic oil
and circulating oil.
Liquid phase rust tester can be widely used in electric power,
petroleum, chemical industry, commercial inspection and scientific
research departments. GB / T11143 ASTM D665 standard for
determining metal corrosion ability and additive corrosion
resistance in lubricating oil, hydraulic oil, steam turbine oil and
other oils
ASTM D665 Standard Liquid phase rust tester
Standard for application of SH123 automatic corrosion tester
ASTM D665 Lubricating Oil Rust Preventing Property Test Apparatus
Lube Oil Liquid Phase Corrosion/ Rust Preventing Characteristics
Tester
ASTM D 665 Lubricating Oil Rust Preventing Characteristics Tester
Standard GB/T11143 ASTM D665 Standard for determining the corrosion
resistance of lubricants, hydraulic oils, turbine oils and other
oils to metals when containing water and for evaluating the
corrosion resistance of additives
The main features
Adopt blue LCD large screen display, Chinese menu, no logo button.
Microcomputer automatic temperature control, automatic timing,
intuitive and simple operation.
Four motors separately stirring, no noise, safe and reliable,
compact size.
It can meet the needs of oil refineries, power plants and
scientific research units, and is one of the essential instruments
for oil analysis and quality inspection
Technical parameters
| 1 | Power supply | AC(220±10%)V, 50Hz |
| 2 | Temperature control range | (room temp~100)℃ |
| 3 | Temperature control accuracy | ±1℃ |
| 4 | Temperature sensor | Pt100 |
| 5 | Temperature display | LCD display |
| 6 | Timing range | 1min~24hour, can be setted at will |
| 7 | Time display | Digital display |
| 8 | Temperature control heating power | 600W |
| 9 | Auxiliary heating power | 1000W |
| 10 | Rotate speed of stirring motor | 1400RPM |
| 11 | Sample stir rate | (1000±50)r/min |
| 12 | Sample testing posiotions | Four positions |
| 13 | Ambient temperature | (0~45)℃ |
| 14 | Relative humidity | ≤85% |
| 15 | Maximum power consumption | 1800W |
| 16 | Dimension: 500mm×330mm×750mm Weight: about 25kg
|
Temperature control mode: LCD screen digital display
Temperature control accuracy: ±0.1℃
Temperature control range: greenhouse ~ 100℃
Sample stirring: 1000±50 RPM
Temperature measuring element: platinum resistance (PT100)
Number of samples: 4 groups, can be used as 4 samples at the same
time, can also choose to open any group of experiments according to
their own situation, do not interfere with each other
Temperature control time: 0 ~ 100 hours arbitrarily set
Ambient temperature: 0℃ ~ 45℃
Ambient humidity: ≤85%
Power source: AC220V / 50 hz
External dimension: 500mm × 330mm × 750mm Weight: about 25kg
Required consumables: washing solvent;
Copper sheet and test steel rod with its own equipment, after use
can choose or own.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Beaker | 4 | piece | |
| 3 | Beaker lid | 4 | piece | |
| 4 | Test steel bar | 4 | piece | |
| 5 | Stirring rod | 4 | piece | |
| 6 | Alumina gauze | 6 | piece | |
| 7 | Power cord | 1 | piece | |
| 8 | Fuse tube | 1 | piece | |
| 9 | Instruction manual | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate of qualification | 1 | copy | |
OUR service
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
