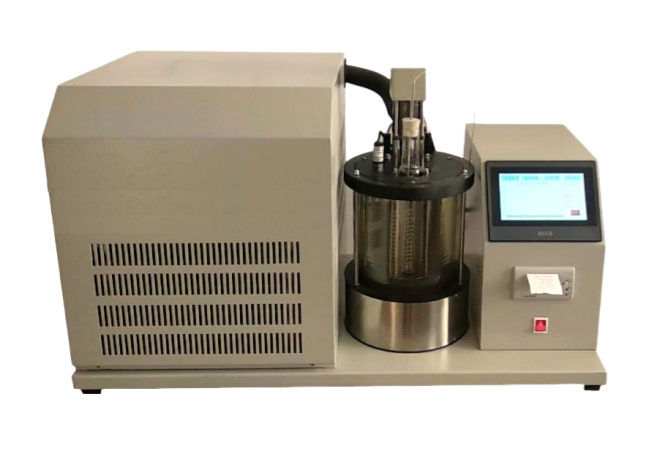

SH112E Automatic low temperature kinematic viscometer
SH112E low temperature petroleum kinematic viscometer conforms to
the national standard GB/T265 "Petroleum product kinematic
viscosity measurement method and dynamic viscosity calculation
method" standard measurement requirements.Two viscosity tubes can
be placed simultaneously for experimentation.
Kinematic viscosity: At a constant temperature, the gravity flow
under a certain volume model is determined, and the constant of the
calibrated glass capillary viscometer flows over time. The
product's kinematic temperature is used to measure the viscosity of
the liquid
| Product model | SH112E |
| Product Name | Low temperature petroleum kinematic viscometer |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | It can measure the kinematic viscosity of light and heavy fuel
oils, lubricants, additives, and silicone oils. |
| Compliant with standards | The requirements of the standard GB/T265 "Petroleum Products -
Determination of Kinematic Viscosity and Dynamic Viscometer
Algorithm" |
| Simple technical features or parameters | It can be used to place two viscosity tubes simultaneously for
experiments, and can also be used as a high viscosity constant
temperature water bath for other experiments- 40 ℃ -60 ℃ arbitrary
setting (customizable -80 ℃ -60 ℃) |
The main features are as follows
● The constant temperature bath is double-layer dewar bottle with
low temperature. The temperature distribution in the bath is even
and the temperature control effect is good.
● The instrument adopts precision digital temperature controller to
control the temperature in the bathtub, the executive components
are solid-state relay SSR, with temperature control accuracy and
accuracy, no contact, no noise, no spark, fast action, long life
and other characteristics.
● Capillary card adopts three point vertical type, flexible and
convenient operation, reliable clamping.
● Adopt color LCD large screen Chinese display, no marker button,
● Temperature measurement using precision platinum resistance
PT100, -40 ℃~60 ℃ can be set arbitrarily,
● The constant of the capillary can be stored after power off.
● Manual sampling, manual cleaning, and automatic calculation of
viscosity value can be performed.
● USB data output function, imported to computer in Excel format
★ Remote upgrade: With TCP network transmission function, software
remote upgrade can be carried out later (optional)
★ Data management: can be connected to the LIMIS system (optional)
Main technical indicators
| Display | Color touch screen, digital display |
| Sensor | PT100 sensor |
| Temp control point | -40℃ ～ 60℃ (Customizable -70℃ ～ 60℃) |
| Temp control accuracy | ±0.1℃ |
| Measurement range | 0.4-30000mm²/s |
| Timing range | 0-9999s |
| Heating power | 750W |
| Power supply | AC220V±10% 50HZ±5% |
| Environment temp | 5℃ - 40℃ |
| Relative humidity | ＜85% |
| Instrument size | 720×450×680mm |
| Instrument weight | 58Kg |
● Customer supplies are required: water or alcohol.
● Strictly according to national standards, the viscosity tube test
before the need to clean the following reagents: solvent oil or
petroleum
Note: The appearance pictures, dimensions, volume and weight of the
instrument are for reference only. If there are any updates to the
instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic viscosity tester | 1 | Unit | |
| 2 | Special viscosity tube | 4 | Piece | |
| 3 | Sample injector | 1 | Piece | |
| 4 | Printing paper | 2 | Roll | |
| 5 | Certificate | 1 | Copy | |
| 6 | Instructions | 1 | Copy | |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality
standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one
year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to
equipment malfunction caused by the user's responsibility, we are
responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime
maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product,
hardwood board+strong bandage to fix corners.
