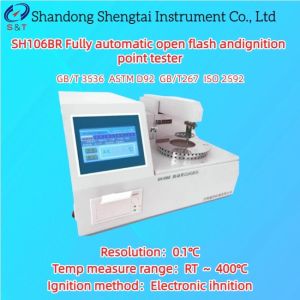

SH106B Automatic open flash point tester
The SH106B fully automatic open flash point tester is designed and
manufactured in accordance with the requirements specified in the
Chinese standards GB/T 3536 and GB/T 267 "Determination of Flash
Point and Fire Point of Petroleum Products (Cleveland Open Cup
Method)". It also supports the determination of flash point of
plasticizers in accordance with GB/T1671-2008 ASTMD92 and the
"Safety Testing and Inspection Specification for Coal Mine Products
- Air Compressors" MT/T1203-2023. ISO 2592
The open flash point is mainly used to measure gasoline engine
lubricating oil, diesel engine lubricating oil, compressor oil, and
refrigerationOil, turbine oil, Gear oil, machine oil, etc
The principle of open flash point measurement is to load the sample
into the test cup to the specified mark. Firstly, increase the
temperature of the sample, then slowly raise the temperature, and
as it approaches the flash point, increase the temperature at a
constant rate. At the specified temperature interval, a small test
flame is passed horizontally through the test cup, and the lowest
temperature at which the vapor on the liquid surface is ignited by
the test flame is used as the measurement result of the open flash
point.
Instrument features
● The instrument adopts color LCD large screen display, full
Chinese man-machine dialogue interface, no identification keyboard,
for the parameters such as pre-value temperature, sample label,
atmospheric pressure, test date, with prompt menu, oriented input
function.
● Automatically correct the influence of atmospheric pressure on
the test and calculate the correction value.
● Differential detection, automatic correction of system deviation.
● Scanning, detection and printing data are automatically
completed, and the test arm automatically rises and falls.
● Electronic ignition and forced air cooling
● Without automatic ignition of air source, improve the safety of
the test
Main technical indexes and parameters
| Display | Color LCD large screen display |
| Working power supply | AC220V±10% 50Hz |
| Temp measurement range | RT ～ 400℃ |
| Repeatability | flash point ≤150℃, error ±2℃; flash point ≥150℃, error ±3℃ |
| Resolution | 0.1℃ |
| Heating speed | in line with GB/T3536 standard |
| Ignition mode | electronic ignition |
| Ambient temperature | 10 ～ 40℃ |
| Relative humidity | ≤80% |
| Instrument size | 430 * 380 * 520mm |
| Instrument weight | about 15kg |
Note: The appearance pictures, dimensions, volume and weight of the
instrument are for reference only. If there are any updates to the
instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic opening flash point meter | 1 | Unit | |
| 2 | Oil cup | 1 | piece | |
| 3 | AC power cord | 1 | Root | |
| 4 | Printing paper | 1 | Roll | |
| 5 | Operating instruction | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of approval | 1 | Copy | |
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national
quality standards, and have a manufacturer's certificate of
conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one
year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to
equipment malfunction caused by the user's responsibility, we are
responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime
maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
