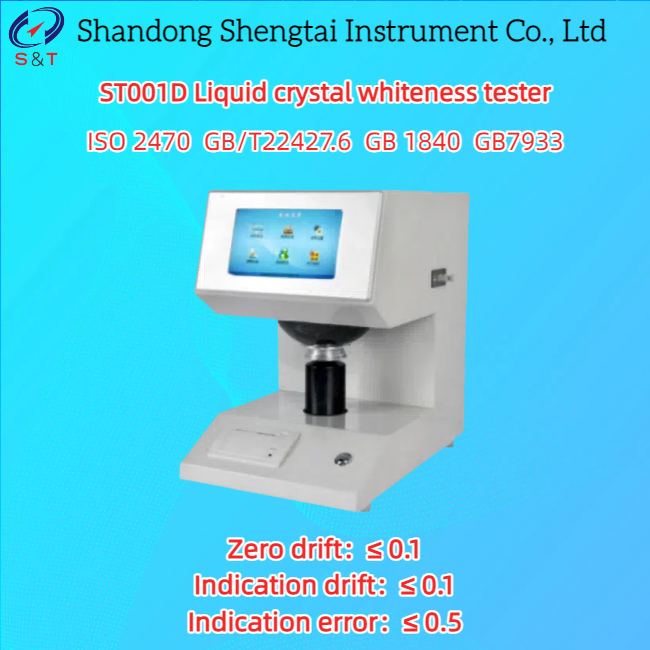

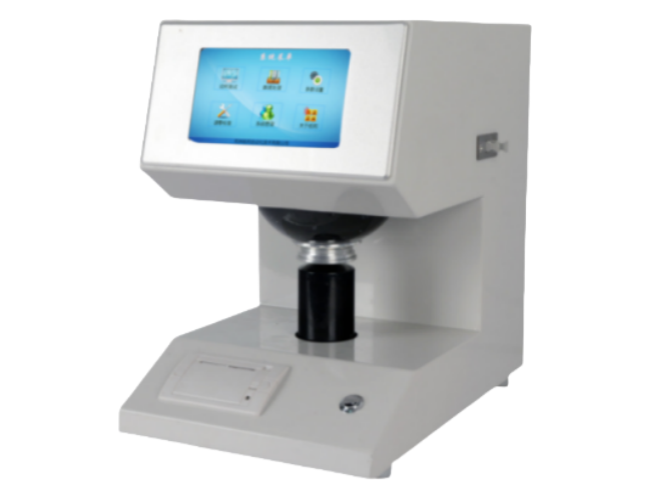

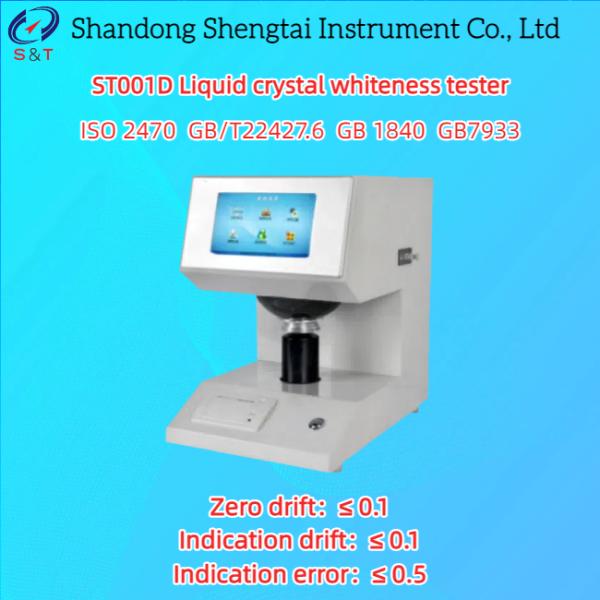

ST001D Liquid crystal whiteness tester
ST001D liquid crystal whiteness tester is widely used in medicine,
grain, flour, starch, paper making, printing, textile printing,
ceramic enamel, building materials, chemical industry, salt making
and other industries to measure the whiteness of objects, as well
as the opacity, transparency, light scattering coefficient, light
absorption coefficient and ink absorption value of paper.
This instrument can measure the whiteness WJ of building materials
and non-metallic mineral products.
Function:
● ISO Brightness (R457 whiteness) can be measured. For fluorescent
whitening samples, the fluorescent whiteness generated by the
emission of fluorescent substances can also be measured.
● Measure the brightness stimulus value.
● Determination of opacity.
● Determination of transparency.
● Determination of light scattering coefficient and absorption
coefficient.
● Determination of blue light whiteness.
Performance characteristics:
● The appearance of the instrument is novel and compact, and the
advanced circuit design effectively ensures the accuracy and
stability of the measured data.
● The instrument simulates D65 illumination.
● The instrument adopts d/o illumination to observe geometric
conditions. The diameter of the diffusing ball is 150mm, the
diameter of the test hole is 30mm, and the light absorber is set to
eliminate the influence of specular reflection of the sample.
● Large screen and high pixel LCD module is used to display and
prompt operation steps in Chinese to display measurement and
statistical results. Friendly man-machine interface makes the
operation of the instrument simple and convenient.
● The instrument has added a printer and adopts imported thermal
printer core, without the use of ink and ribbons, no noise during
operation, fast printing speed, etc.
● The instrument has power failure protection, and the calibration
data will not be lost after power failure.
● Data communication: the instrument is equipped with network
interface and USB interface, and the user can transfer data to the
server through Ethernet TCP/IP protocol or directly connect to the
computer through USB cable (optional).
Main technical indicators:
● GB 8940.2: Pulp Whiteness Measurement Method.
● GB 2913: Test Method for Whiteness of Plastics.
● GB/T22427.6 Determination of starch whiteness
● GB 1543: Determination of Opacity of Paper.
● GB 1840: Determination Method of Industrial Potato Starch.
● GB/T 3978 Standard Lighting Bodies and Geometric Conditions
● GB7974: Paper and Board Whiteness Measurement Method (d/o Method)
● GB 13025.2: General Test Methods for Salt Industry Determination
of Whiteness
● GB/T 23774 General Method for Determination of Whiteness of
Inorganic Chemical Products
● GB7933: Pulp, Paper and Paperboard Determination of Diffuse
Reflectance Factor (d/o Method)
● ISO 2470: Paper and board Determination of diffuse blue
reflectance factor (ISO whiteness)
Technical parameter
| Power supply | AC220V ± 10% 50HZ |
| Zero drift | ≤ 0.1 |
| Indication drift | ≤ 0.1 |
| Indication error | ≤ 0.5 |
| Repeatability error | ≤ 0.1 |
| Mirror reflection error | ≤ 0.1 |
| Sample size | Test plane ＞φ 30mm Thickness ＜ 40mm |
| Instrument size | 360 × 264 × 400mm |
| Net weight | 20 kg |
Note: The appearance picture, size, volume and weight of the instrument
are for reference only. If the instrument is updated, it may be
slightly changed without further notice.
Package list
| Number | Name | Quantity | Unit | Note |
| 1 | Whiteness meter host | 1 | Unit | |
| 2 | Black tube | 1 | Piece | |
| 3 | Standard whiteboard | 2 | Piece | |
| 4 | Bulb | 2 | Piece | |
| 5 | Special powder compactor | 1 | Set | |
| 6 | Printing paper | 2 | Roll | |
| 7 | Power cord | 1 | Root | |
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The instruments and materials provided are brand new goods that
meet the national quality standards and have the manufacturer's
certificate of conformity;
----The materials and main components provided meet the technical
requirements specified in the technical data;
----The warranty period of the whole equipment is one year
(excluding normal wear of vulnerable parts).
----We are responsible for free maintenance of the instrument in
case of quality problems during the warranty period. In case of
equipment failure caused by the user, we will be responsible for
maintenance and reasonable charges.
----The equipment will be supplied with spare parts at a
preferential price for life, and the whole machine will be
maintained and repaired for life.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge the cost.
