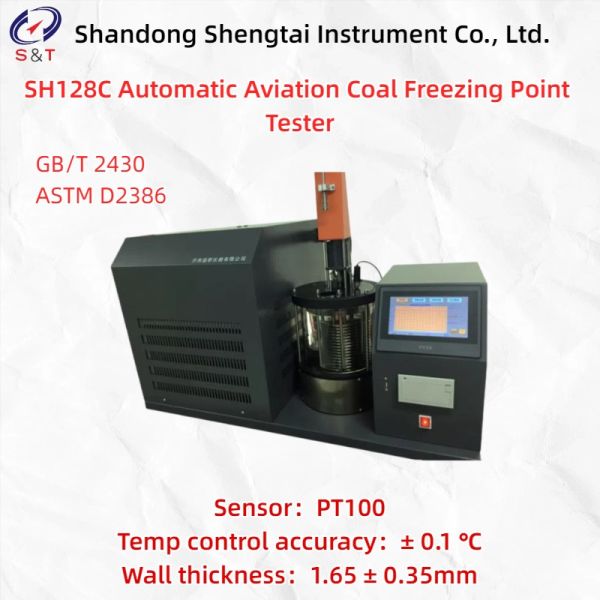

SH128C Automatic Aviation Coal Freezing Point Tester

The SH128C automatic aviation kerosene freezing point tester is designed and manufactured according to GB/T 2430 "Determination of Freezing Point of Jet Fuel" and ASTM D2386. Suitable for determining the freezing point, i.e. the crystallization temperature, of jet fuel oil. The automatic aviation coal freezing point meter is equipped with heating and cooling devices, and is equipped with imported fiber optic sensors to automatically track experimental changes. It uses imported compressors for cooling and a 7-inch touch screen to display data. After the experiment is completed, the experimental data is saved and the experimental result data can be printed.

Instrument features and parameters:

● Adopting embedded system design and imported PT100 temperature sensor,

● Automatic detection throughout the entire testing process; 7-inch color touch screen;

● The test results can be stored; You can view historical data; Print the results on the instrument,

● Mechanical automatic stirring, dual automatic stirring of bath solution and sample

● The experimental results can be exported through a USB flash drive and stored on a computer for multiple experiments and comparisons

● Standard micro printer with automatic measurement and thermal printing

● Using fiber optic sensors to determine the freezing point of aviation fuel.

● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min

● Refrigeration system: imported cascade refrigeration compressor.

● Cold bath temperature control:+30 ℃ ～ -70 ℃

● Working cold bath: double-layer vacuum glass bath

● Temperature control accuracy: ± 0.1 ℃

● Sample mixing: synchronous reduction motor, once per second

● Double walled glass test tube freezing point test tube: outer tube outer diameter 30 ± 0.7mm, wall thickness 1.9 ± 0.3mm

● Inner diameter of inner tube 18.7 ± 1.1mm, length 232mm, wall thickness 1.65 ± 0.35mm

● Power consumption of the whole machine: around 1500W

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
