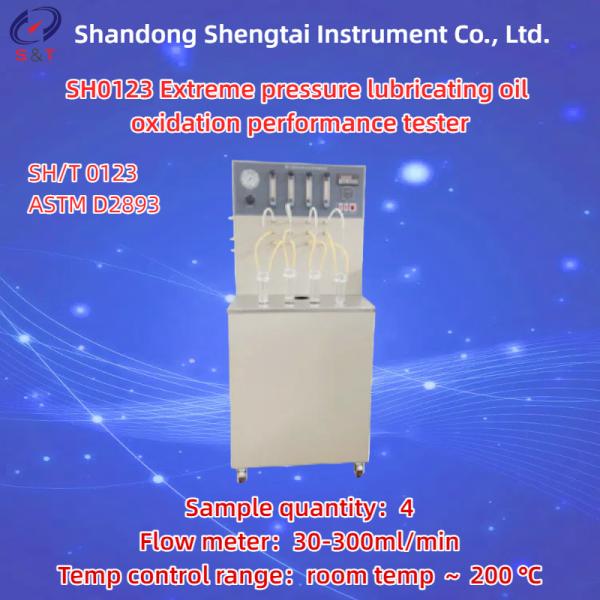

SH0123 Extreme pressure lubricating oil oxidation performance
tester
The SH0123 extreme pressure lubricating oil oxidation performance
tester is designed and manufactured according to the requirements
specified in the industry standard SH/T 0123 "Determination of
Extreme Pressure Lubricating Oil Oxidation Performance" of the
People's Republic of China. Suitable for the determination of
extreme pressure lubricating oil (such as gear oil). The usage
method is as follows: the sample is subjected to constant pressure
drying air at a certain temperature and tested for 312 hours. The
oxidation stability of the oil is indicated by measuring the
increase in viscosity and precipitation value of the sample at 100
℃.
Performance characteristics:
• The instrument is equipped with a temperature controller to
control the water bath temperature from room temperature to 200 ℃.
Users can also adjust the temperature control meter according to
their actual needs.
• The workbench of the instrument has a total of 4 test baths,
which can conduct tests on 4 samples simultaneously.
• The instrument is equipped with four flow meters, which
respectively indicate the gas flow rate entering the four oxidation
tubes.
• The gas source used for the instrument is oxygen with a purity of
not less than 99.5%, which can be directly used from oxygen
cylinders; If it comes from the factory oxygen main, a filter and a
pressure regulator valve should be installed before connecting this
instrument. The oxygen input port is located on the side of the
instrument.
• The instrument is equipped with a timer to record the time of the
experiment, and there will be an alarm prompt when the time is up.
Specification
| Flow meter | 30-300ml/min |
| Oxygen tube | specialized high-temperature resistant glass product |
| Working power supply | AC220V 50HZ |
| Power consumption | ≤ 2400W |
| Temp control method | Automatic temperature control with digital temperature meter |
| Temp control range | room temp ～ 200 ℃ |
| Temp control accuracy | set temp ± 0.1 ℃ |
| Temp measuring element | thermistor |
| Sample quantity | 4 |
• Flow meter: 30-300ml/min, with one flow meter connected to each
oxidation tube
• Oxygen tube: specialized high-temperature resistant glass product
• Working power supply: AC220V50Hz
• Power consumption: ≤ 2400W
• Temperature control method: Automatic temperature control with
digital temperature meter
• Temperature control range: room temperature ～ 200 ℃,
• Temperature control accuracy: set temperature ± 0.1 ℃
• Temperature measuring element: thermistor
• Sample quantity: 4 channels, and 4 samples can be made at the
same time.
Note: The appearance pictures, dimensions, volume, and weight of the
instrument are for reference only. If there are any updates to the
instrument, there may be slight changes without prior notice.
